Ground / Earth Continutity Testers

Ground/ Earth Continuity Tester is an instrument designed to verify the continuity of the ground (earth) connection in electrical system and equipment. This mainly used to ensure the safety compliance. This unit generates a 30A sinusoidal AC current, measures the voltage drop, and calculates the resistance of the ground path using the four-terminal method. It comes with digital display meters and front-panel indicators for pass/fail status. The test current will be delivered through a 3-pin socket with high-current carrying cable and earth pin. Unit comes with timer for setting the test duration from (typically 1 to 60 seconds)- test durations can vary as per different testing standards of different products.

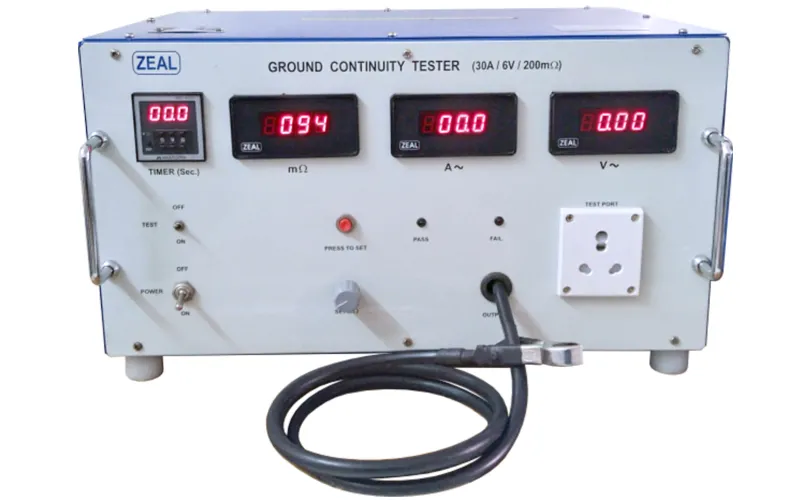

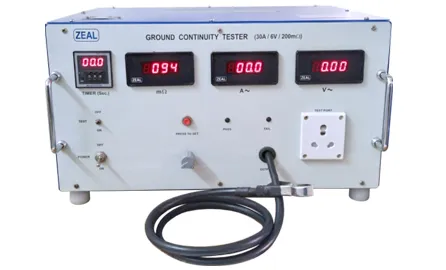

Ground / Earth Continuity Tester

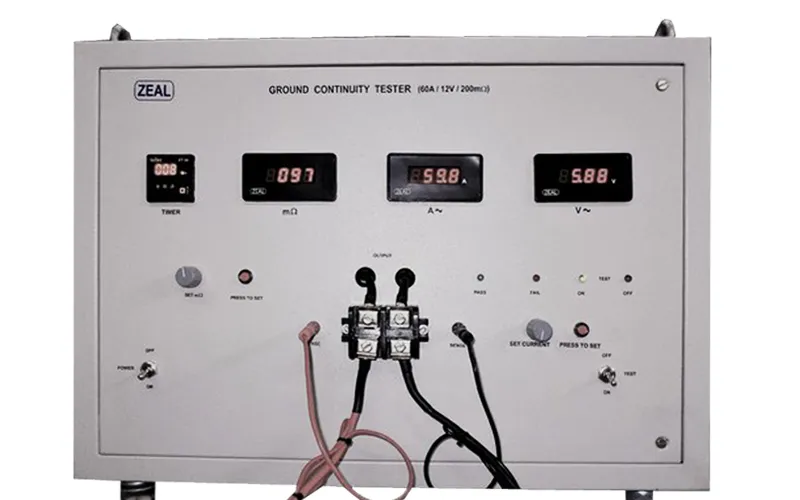

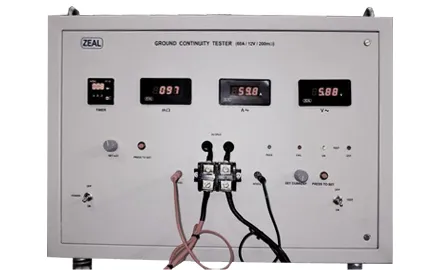

Ground / Earth Continuity Tester


Features
  • Test ON / OFF by toggle switch.
  • Test Pass & Fail indication at front panel.
  • 31/2 digital meter for mili ohm (mΩ) indication.
  • 31/2 digital meter for Ammeter (A~) indication.
  • 31/2 digital meter for Voltmeter (V~) indication.
  • Timer to set testing duration.
  • Test port at front panel.
  • Test ON by push button.
  • Output through the high current wire and Earth pin of the 3-pin socket.

It can be used for
  • Testing appliances for Electrical Safety Compliance.
  • Ensuring proper earthing in Manufacturing units.
  • Quality Control.
  • Testing & Certification Labs.

Technical Specification

Model ZMGCT
Input Power Supply 230V AC, ±10%, 50Hz
Resistance Measurement Range 0 to 200 milli Ohm
Test Current 30A AC
Open circuit voltage 6V, AC
Current Waveform Sinusoidal
Acceptable setting By press to set switch & Potentiometer, using digital milli Ohm meter
Programmable Timer 1 to 60 sec
Metering 3 1/2 digit Digital V, A and milli Ohm meter
Indication Accuracy V: 1.5% of reading
A: 1.5% of reading
m Ω: 1.5% of reading ± 5digit
Accuracy of trip resistance ±5 mΩ
Indications Test Pass, Test Fail Test ON & Test OFF
Accessory Mains Cord
Method of measurement Passing a constant AC current (10A) and measuring a voltage drop across the resistance to be measured.
Dimensions 480mm(W) x 350mm(D) x 250mm(H)
Weight 20kg. (approx.)

Note : We Can Upgrade Products With Time To Give Improved Quality
