We are Manufacturer, Supplier, Exporter of 4 (Four) Wire Low Resistance Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

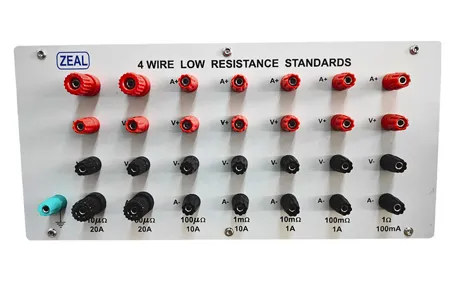

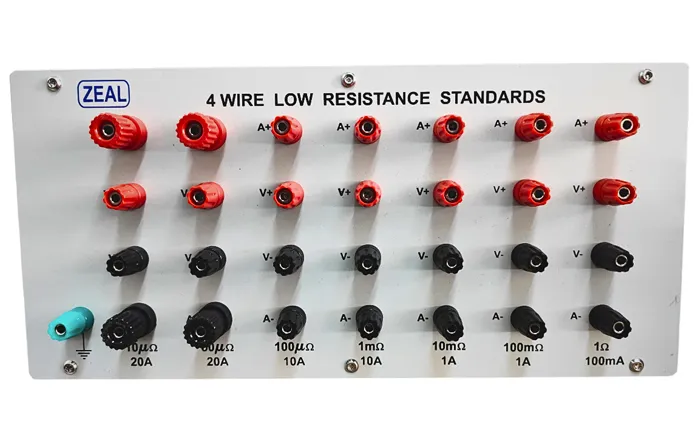

The Four Wire Low Resistance Standard is designed to calibrate Milli Ohm Meter, Micro Ohm Meter, Low Resistance Meter etc.
Features
- Fixed Resistance.
- High accuracy.
- Excellent stability.
- Outputs through 4mm safety BTI terminals.
Technical Specification
| Model | ZMLRJ | |
| Fixed Resistor | 10 µΩ, 50 µΩ, 100 µΩ, 1 mΩ, 10 mΩ, 100 mΩ, 1000 mΩ | |
| Maximum Test current | 1) For 10 µΩ, 50 µΩ : 20 A | |
| 2) For 100 µΩ, 1 mΩ : 10 A | ||
| 3) For 10 mΩ, 100 mΩ : 1 A | ||
| 4) For 1000 mΩ : 100 mA | ||
| Accuracy | Resistance | Accuracy: @ 20o to 28oC, RH <70% |
| 10µΩ, 50µΩ | ±0.25% | |
| 100µΩ, 1mΩ,10mΩ,100mΩ, 1000mΩ | ±0.1% | |
| Dimension | 420mm(W) X 160mm(D) X 90mm(H) | |
| Weight | 5kg. (Approx.) | |
Note : We Can Upgrade Products With Time To Give Improved Quality
