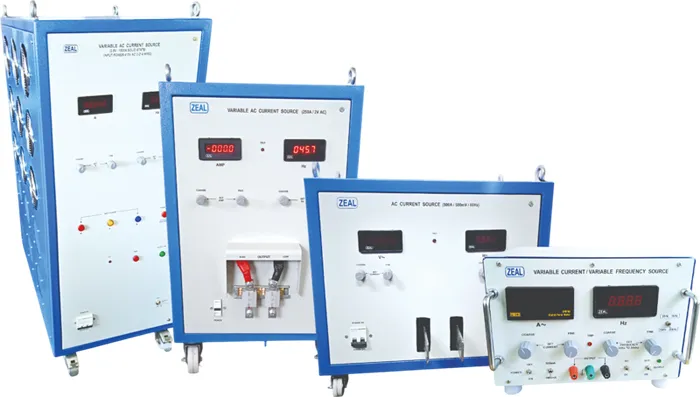

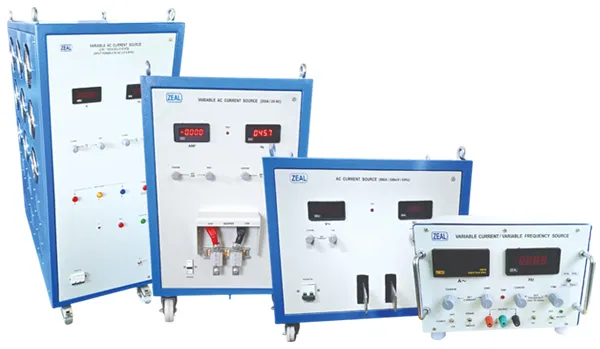

Variable Current / Variable Frequency Source

We are Manufacturer, Supplier, Exporter of Variable Current / Variable Frequency Source. This product also known as AC Current Source.

The source is mainly used in the applications where both current & frequency need to be precisely controlled. Adjustable output frequency is ideal for simulating different real time applications and our source delivers clean sinusoidal waveform with minimum harmonic distortion.

It can be used for

Testing of Induction Motors & Servo Drives at different frequencies and current loads.
Testing of circuit breakers' contact drop at rated high current & also used for testing of AC current transformer's (CT's).
Transformer & Relay Testing under variable operating conditions.
Quality control in manufacturing plants.

Technical Specification

Make	Zeal
Manufacturing Capacity	Up to 8000A
Input Power	230V AC, 50Hz; 415V AC (Ph-Ph), 50Hz (3Ph,4W)
Available Output Current Ranges	0 to 100A, 0 to 200A, 0 to 500A, 0 to 1000A, 0 to 1500A, 0 to 2000A, 0 to 2500A, 0 to 3000A, 0 to 4000A, 0 to 5000A, 0 to 6000A, 0 to 8000A adjustable or Customizable as per requirement
Burden	2V, 5V or as per Requirement
Output Frequency Range	45Hz to 65Hz or as per requirement
Setting of Current & Frequency	By multiturn Potentiometers
Meters	Digital Ammeter & Frequency meter to indicate output Current & Frequency
Accuracy	± 2 % at FS
Frequency accuracy	± 2 Dgt
Output THD	5%
Control Technology	IGBT or Linear
Cooling	Forced Air
Protection	Against Overburden & Open Circuit
Circuit Breakers	with appropriate Input & Output MCBs/MCCB’s circuit breakers

Note : We Can customize output voltage, current and frenquency as per your requirement.

Typical Available Models & Ratings

Models	O/P Current Rating	Burden
ZMVCVFS-100A	0 to 100A	5V max
ZMVCVFS-200A	0 to 200A	5V max
ZMVCVFS-500A	0 to 500A	5V max
ZMVCVFS-1000A	0 to 1000A	5V max
ZMVCVFS-1500A	0 to 1500A	2V max
ZMVCVFS-2000A	0 to 2000A	2V max
ZMVCVFS-2500A	0 to 2500A	2V max
ZMVCVFS-3000A	0 to 3000A	2V max
ZMVCVFS-4000A	0 to 4000A	2V max
ZMVCVFS-5000A	0 to 5000A	1V max
ZMVCVFS-6000A	0 to 6000A	1V max
ZMVCVFS-8000A	0 to 8000A	1V max

Note : High Voltage & Haigh Current Range Can Be Customized As Per Requirements.

Note : We Can Upgrade Products With Time To Give Improved Quality
