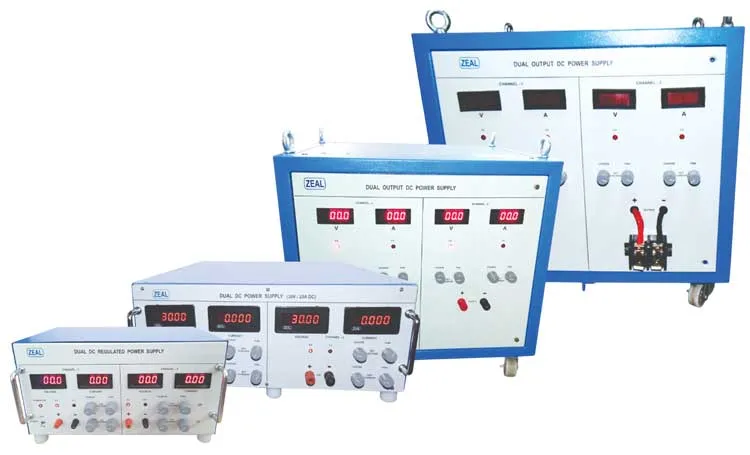

Dual DC Regulated Power Supply ( Power Supplies )

We are Manufacturer, Supplier, Exporter of Dual DC Regulated Power Supply and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Dual DC Regulated Power Supply is useful for Production, R & D and QC Departments of Electronics industries & battery charging application. Also it is useful in educational institutes, engineering college laboratories and testing & calibration laboratories.

Unit can work both in Constant Voltage (CV) and Constant Current (CC) mode. Output of the Power Supply is floating. The power supply can be used as a positive or a negative source by grounding negative or positive output terminal respectively. The power supply is designed to operate in ambient temperature and in a free air circulating conduction.

Features

Protection against overload & short circuit by CC mode.
Separate meters for voltage and current.
Set Voltage & Current by coarse & fine potenometers.
LEDs to indicate the modes of operaon CC & CV.
Two idencal Output Channels.

Technical Specification

Make	Zeal
Model	ZM2PS
Input Power Requirement	230V AC ±10%, 50Hz
Load Regulation	±0.1%
Line Regulation	±0.1%
Ripple & Noise	±0.1% rms
Accuracy	±0.5%, ±3 digit
Display	3½ digit 7 segment red LED display for Voltage Output
Display	3½ digit 7 segment red LED display for Current Output
Controls	Voltage and Current setting by coarse & fine potentiometer
Controls	Power ON/OFF switch
Protection	Protection against overload & short circuit by CC mode

Note : DC Regulated Power Supplies can be designed to meet the standard operating voltage and frequency requirements for your country.

Typical Ranges Are Available

Input Power 230V ±10% 50Hz Single Phase		Input Power : 415V ±10% 50 Hz 3 Phase 4 Wire
Model	Rating	Model	Rating
ZM2PS15-5	0-15V / 0-5A	ZMPS30-150	0-30V / 150A
ZM2PS30-2	0-30V / 0-2A	ZMPS30-200	0-30V / 200A
ZM2PS30-5	0-30V / 0-5A	ZMPS30-400	0-30V / 400A
ZM2PS30-10	0-30V / 0-10A	ZMPS50-80A	0-50V / 80A
ZM2PS30-15	0-30V / 0-15A	ZMPS50-100A	0-50V / 100A
ZM2PS30-20	0-30V / 0-20A	ZMPS50-200A	0-50V / 200A
ZM2PS30-25	0-30V / 0-25A	ZMPS60-60A	0-60V / 60A
ZM2PS30-30	0-30V / 0-30A	ZMPS60-100A	0-60V / 100A
ZM2PS30-50	0-30V / 0-50A	ZMPS60-200A	0-60V / 200A
ZM2PS60-5	0-60V / 0-5A	ZMPS60-400A	0-60V / 400A
ZM2PS60-10	0-60V / 0-10A	ZMPS80-50A	0-80V / 50A
ZM2PS60-15	0-60V / 0-15A	ZMPS80-80A	0-80V / 80A
ZM2PS60-20	0-60V / 0-20A	ZMPS80-100A	0-80V / 100A
ZM2PS60-30	0-60V / 0-30A	ZMPS100-50A	0-100V / 50A
ZM2PS60-50	0-60V / 0-50A	ZMPS100-100A	0-100V / 100A
ZM2PS100-5	0-100V / 0-5A	ZMPS100-200A	0-100V / 200A
ZM2PS100-10	0-100V / 0-10A	ZMPS150-30A	0-150V / 30A
ZM2PS100-20	0-100V / 0-20A	ZMPS150-50A	0-150V / 50A
ZM2PS300-2	0-300V / 0-2A	ZMPS200-15A	0-200V / 15A
ZM2PS300-5	0-300V / 0-5A	ZMPS200-30A	0-200V / 30A
ZM2PS300-10	0-300V / 0-10A	ZMPS300-10A	0-300V / 10A
ZM2PS500-2	0-500V / 0-2A	ZMPS300-20A	0-300V / 20A
ZM2PS500-5	0-500V / 0-5A	ZMPS500-5A	0-500V / 5A
ZM2PS1000-2A	0-100V / 0-2A	ZMPS1000-5A	0-1000V / 5A
