We are Manufacturer, Supplier, Exporter of Transistor, Zener Diode Testers and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
Zener Voltage Measurement

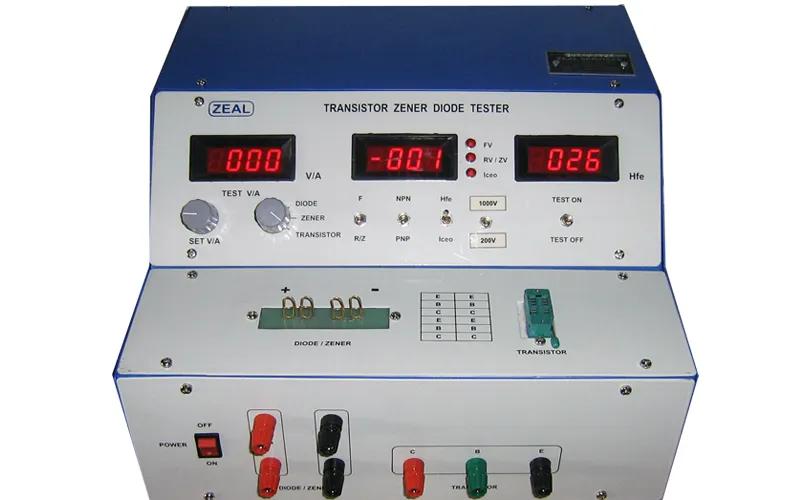

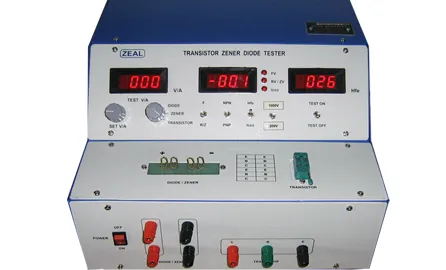

"Transistor, Zener and Diode Tester" is specially designed to measure parameters of numerous of Diodes, Transistors and Zener diodes. It consist parameter selection switches for measuring respective voltage or current for inserted components
It consist parameter selection switches for measuring respective voltage or current for inserted components.
This unit has 3 different display to indicated set voltage, Forward drop voltage, Reverse Breakdown voltage, Iceo and Hfe ( gain ).
Technical Specification
Make |
ZEAL |
| Model | ZMTZDT |
| Input Power | 230V AC, 50Hz / 110V AC, 60Hz |
| Hfe Measurement | |
| Test Voltage Range | 5.60 Volt VCC |
| Base Current | 8µA |
| Accuracy of Hfe | 1.5% |
| Ice Measurement | |
| Test Voltage Range | 0 to 200V DC |
| Leakage Current Range | 2000µ |
| Accuracy | 1% |
| Diode Forward Drop Measurement | |
| Test Current Range | 0 to 10A DC |
| Forward drop Voltage Range | 2V DC |
| Accuracy | 1% |
| Diode Reverse Voltage Breakdown Measurement | |
| Test Voltage Range | 0 to 1000V DC |
| Acceptable Leakage Current Range | 1 mA DC |
| Accuracy | 1% |
| Zener Voltage Measurement | |
| Test Voltage Range | 2 to 1000 V DC at 20µA max. |
| Accuracy | 1% |
| Metering | 3½ Digit 7 Segment Display |
| Weight | 15kg. (Approx.) |
Note : We Can Upgrade Products With Time To Give Improved Quality
