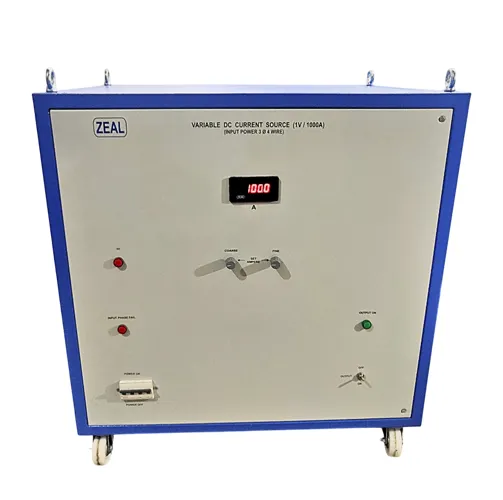

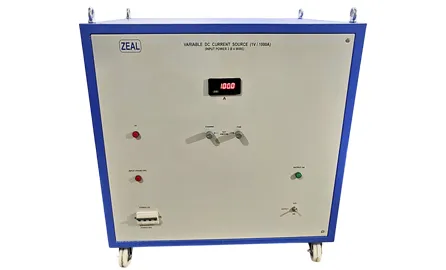

DC High Current Source

ZEAL DC High Current Source is a unique in its kind of technology. This precision DC High Current Source has its output range from 0 to 1000A. The regulation, stability, and accuracy of the current source are excellent.

It can be used for

Calibration high-current meters, shunts, and sensors.
Calibration of DC clamp on Meters.
Testing of relay contact drop at rated high current & also used for testing of DC current transformer's (CT's).
Frequency setting by potentiometer.
Separate output ports for V( Hi ), mA( Hi ), 10A( Hi ) and Com.
Supporting research, development, and QA in industrial testing labs.
Evaluating battery packs, power modules, and converters, especially in EV and UPS systems.

Technical Specification

Make	ZEAL
Model	ZMDCS1000A
Input Power	230V AC, 50Hz; 415V AC (Ph-Ph), 50Hz (3Ph,4W)
Burden	1 Volt
Current Range	0 to 1000A
Controls	Current setting by coarse & fine multiturn potentiometers
Metering	4½ digit 7 segment display for DC Ammeter
Protection	Against Overload
Accuracy	Current : ±1%
Weight	300 kg. (Approximately)

Note : We Can customize current rating as per your requirement.
