• Selector switch for mV/mA selection.
• mV/mA setting by coarse & fine multiturn potentiometers.
• RTD range selection by Decade Switch.
4½ Digit, 7 Segment Display
mV/mA: 0.1% ± 3digit.
Over Load & Short Circuit

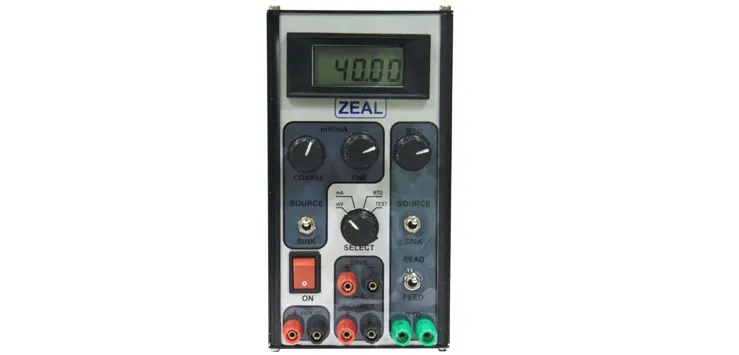

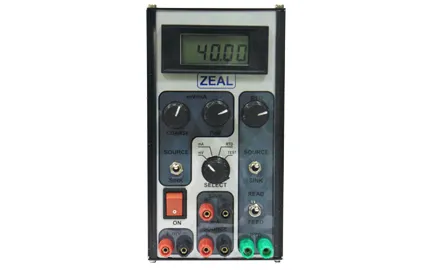

mV / mA / RTD Calibrator Model ZMPCM is specially designed for onsite calibration and trouble shooting of process control instruments such as - indicators, controllers, isolator’s two wire transmitters etc.
Instrument operates on 230 VAC and is immune to noise and pickups generated in plant. It incorporates mA Source and Sink ( Measure ) & mV Source along with potential free RTD Simulator.
mV/mA outputs are protected against short circuit and over current respectively. 4½ digit 7 Segment display is used for mV/mA indication
