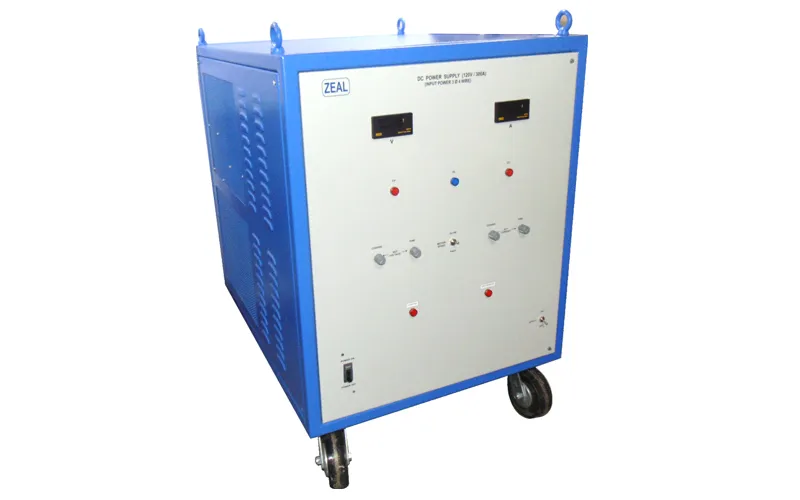

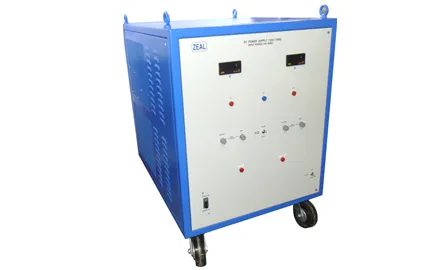

We are Manufacturer, Supplier, Exporter of High Current DC Power Supply and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
Technical Specification
Make |
Zeal |
Model |
ZMPS50 -100, ZMPS30 - 500 |
Range |
Voltage : 0 to 50V DC Current : 0 to 100 A, ( ZMPS50 - 100 ) Voltage : 0 to 30V DC Current : 0 to 500 A, ( ZMPS30 - 500 ) |
Input Power |
230V AC, 50Hz; 415V AC (Ph-Ph), 50Hz (3Ph,4W) |
Line Regulation |
± 0.1% |
Load Regulation |
± 0.1% |
Meters |
Output DC Volt Meter & Ammeter (Digital 3½ digit) |
Accuracy of meters |
0.75% ± 2 digit |
Controls |
Voltage and current setting: By coarse & fine potentiometer. Power ON / OFF by MCB Switch |
Other Features
Protection |
Against overload. |
Note : We Can Upgrade Products With Time To Give Improved Quality
