We are Manufacturer, Supplier, Exporter of Time / Event Calibrators and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

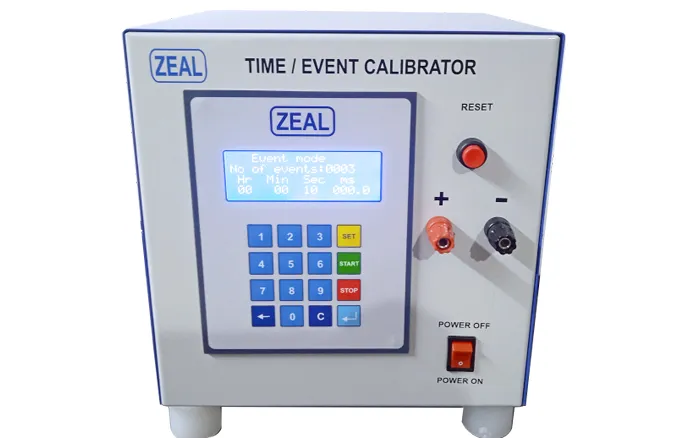

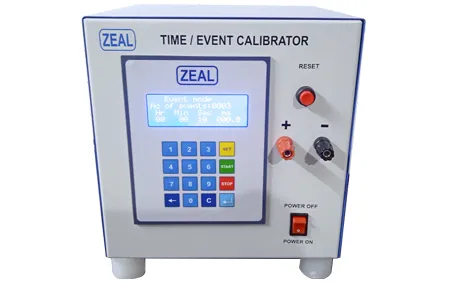

Time/Event Calibrator has been designed to calibrate Time Interval Metre, Event Counters and Time per division of oscilloscope. Output is High 5V & Low 0V (TTL) compatible pulses. ON Time is programmed on the LCD Display using keypad.
Features
- Power ON / OFF by rocker switch.
- Programming by key pad.
- 20X4 LCD display.
- RESET by push button.
- TTL output for Time & Event mode.
Technical Specification
| Model | ZMTEC | ||
| Input Power Supply | 230V AC, ±10 % @ 50Hz. | ||
| Operating Mode | 1. Event Mode | 2. Time Mode | 3. Oscilloscope Mode |
| Time Range | 0.1ms to 99 Hrs | ||
| Accuracy of Time | 0.05% | ||
| Resolution of time | 0.1ms | ||
| Event Range | 0 to 9999 | ||
| Oscilloscope Range | 500.0 µs to 50.00 s | ||
| Programming | By key pad | ||
| Display | 20X4 LCD | ||
| Operating Temperature | 10oC to 45oC | ||
| Storage Temperature | 5oC to 55oC | ||
| Dimension | 200mm(W) X 200mm(D) X 200mm(H) | ||
| Weight | 3kg. (Approx.) | ||
Note : We Can Upgrade Products With Time To Give Improved Quality
