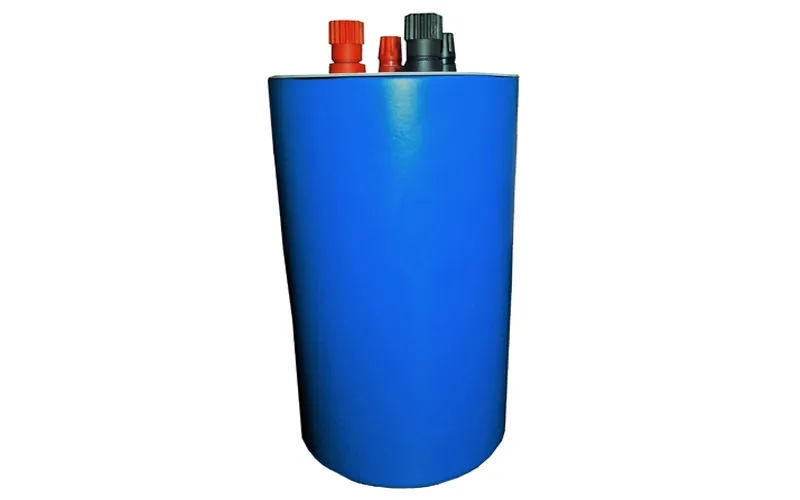

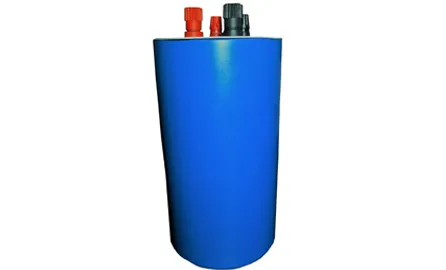

Set of 4 wire Low Resistance standards Fixed resistors
10µΩ, 50µΩ, 100µΩ, 1mΩ, 10mΩ, 100mΩ, 1000mΩ
Maximum test currents
For 10µΩ & 50µΩ: 20 A
For 100µΩ & 1mΩ: 10 A
For 100mΩ & 10mΩ: 1 A
For 1000mΩ: 100 mA
0.25% for 10µΩ, 50µΩ,0.1% for 100µΩ, 1mΩ, 10mΩ, 100mΩ, 1000mΩ
Four wire low resistance standard is a source of fixed low resistances of different values from micro - ohm to milliohm.
Four wire measurements are best for low resistance measurements. Current is pumped ( through A+ and A- binding posts ) and voltage drop is measured ( across V+ and V- binding posts ). Using formula R = V/I,resistance is calculated.
Accessory : Set of banana to banana cables of suitable length ( 2 red and 2 black )
