We are Manufacturer, Supplier, Exporter of DC Low Current Source and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

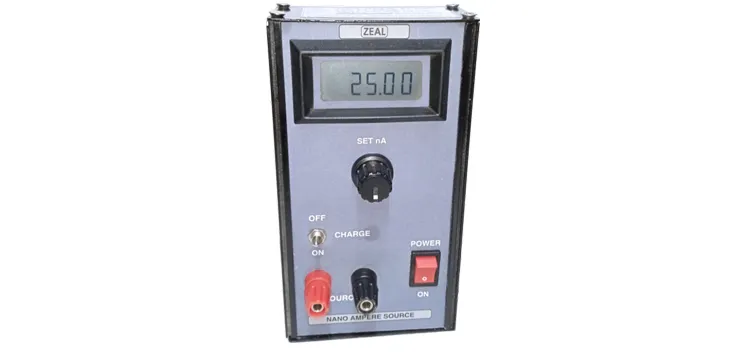

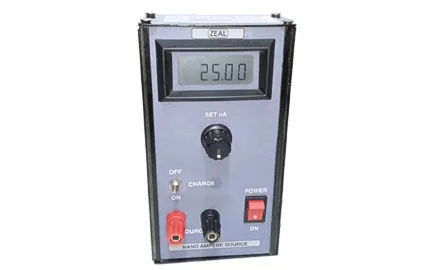

The DC Low Current Source ZMLCS is specially designed for onsite calibration and troubleshooting of process control instruments such as indicators and controllers. The instrument operates on two 9V batteries and is immune to noise and pickups generated in the plant. The instrument is highly reliable. Over current protection is provided for the output.
Features
- Powered by 9V DC Rechargeable Battery.
- 4½ digit LCD display.
- Output ON / OFF by rocker switch.
- Current setting by coarse & fine potentiometers.
- Output ON & Charging selection by toggle switch.
Technical Specification
| Model | ZMLCS |
| Input Power | Battery Powered (9V 2 Batteries) |
| Output Range | 0 to 25 nA |
| Setting | By multi turn potentiometer |
| Accuracy | 1.5% reading ±5 digit |
| Dimensions | 90mm(W) X 44mm(D) X 170mm(H) |
| Weight | 0.5kg. (Approx.) |
Note : We Can Upgrade Products With Time To Give Improved Quality
