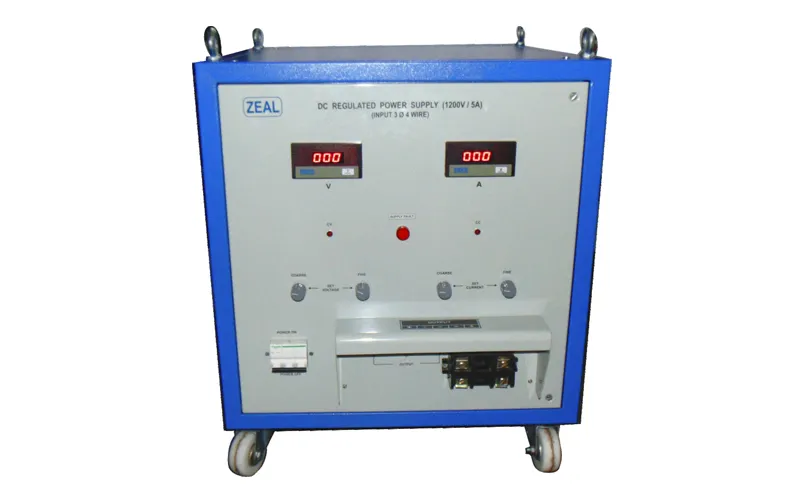

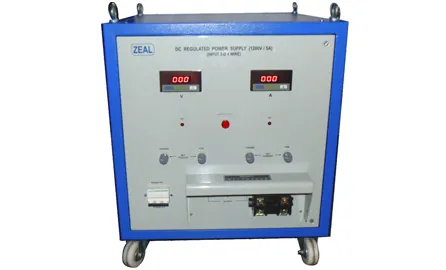

We are Manufacturer, Supplier, Exporter of High Voltage DC Power Supply and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.
Technical Specification
Make |
Zeal |
Model |
ZMPS1000 -1, ZMPS1000 - 2, ZMPS1000 - 5 |
Range |
Voltage : 0 to 1000V DC Current : 1 A, ( ZMPS1000-1 ) Voltage : 0 to 1000V DC Current : 2 A, ( ZMPS1000 - 2 ) Voltage : 0 to 1000V DC Current : 5 A, ( ZMPS1000 - 5 ) |
Input Power |
230V AC, 50Hz; 415V AC (Ph-Ph), 50Hz (3Ph,4W) |
Line Regulation |
±0.05% |
Load Regulation |
±0.05% |
Meters |
Output DC Volt Meter & Ammeter ( Digital 3½ digit ) |
Accuracy of meters |
0.5% ±2 digit |
Controls |
Voltage and current setting: By coarse & fine potentiometer. Power ON / OFF switch |
Other Features Protection |
Against overload & short circuit by CC mode |
Note : We can manufacture output upto 3000V Linear Power Supply.
