We are Manufacturer, Supplier, Exporter of Contact - Non Contact Type Tachometer Calibrators and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

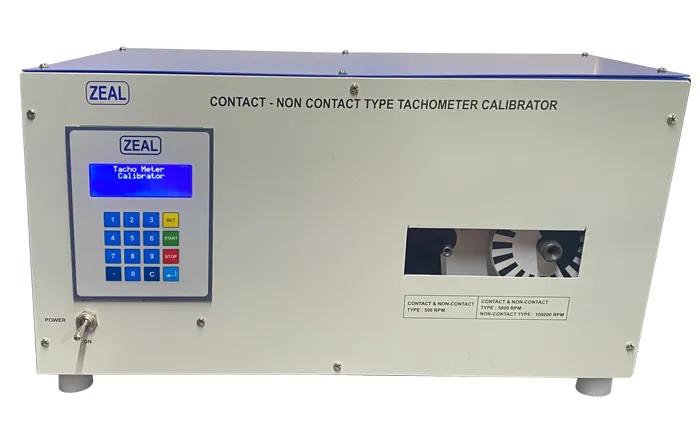

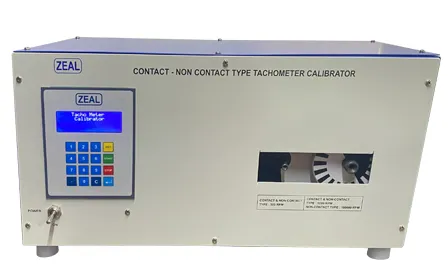

Contact-Non Contact Type Tachometer Calibrators, Model ZMC-NTC is very easy to use for calibration of Contact & Non Contact Type Tachometer.
Features
- Power ON / OFF by Toggle switch.
- Programming by key pad.
- 20X4 LCD display.
Technical Specification
| Input Power Supply | 230V, 50 Hz AC Single Phase. |
| Ranges | 1) 10 to 500 RPM Contact Type. |
| 2) 10 to 500 RPM Non Contact Type. | |
| 3) 100 to 5000 RPM Contact Type. | |
| 4) 100 to 5000 RPM Non Contact Type. | |
| 5) 5000 to 100000 RPM Non Contact Type | |
| Display Resolution Range Wise | 1) 0.01 for 10 to 500 RPM (Contact Type) |
| 2) 0.01 for 10 to 500 RPM (Non Contact Type) | |
| 3) 0.1 for 100 to 5000 RPM (Contact Type) | |
| 4) 0.1 for 100 to 5000 RPM (Non Contact Type) | |
| 5) 1 for 5000 to 100000 RPM (Non Contact Type) | |
| Display | 20 X 4 LCD display |
| Display Accuracy | 0.05% ± 2 digit (With or Without Contact Load) |
| Stability of Speed | 0.1% rdg (With or Without Contact Load) |
| Control | Numeric key pad |
| Dimensions | 500mm(W) X 250mm(D) X 250mm(H) |
| Weight | 22kg. (Approx.) |
Note : We Can Upgrade Products With Time To Give Improved Quality
