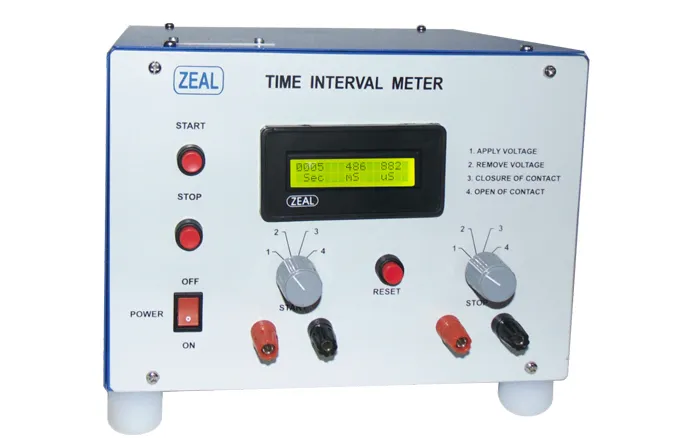

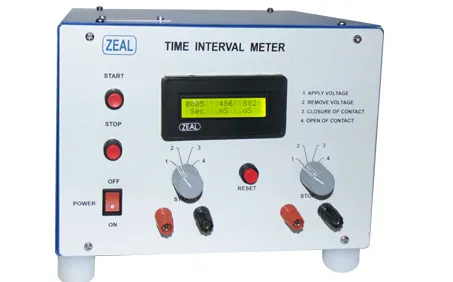

Time Interval Meters ( Micro Seconds )

We are Manufacturer, Supplier, Exporter of Time Interval Meters ( Micro Seconds ) and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Time interval meter measures accurately the time lapse between the two electrical events, e.g., applying voltage, removing voltage, closure of contact, and opening of contact. It is therefore very ideal to measure the response time or transverse time of relays. They can be used for the calibration of timers, time totalizers, time switches, protection relays, and stopwatches.

Features

Power ON / OFF by rocker switch.
START & STOP by push button.
Two line LCD disply.
START & STOP mode selection by rotary switch.
RESET by push button.

Technical Specification

Model	ZMTIMµS
Input Power Supply	230 V AC, ±10 % @ 50 Hz.
Measurement Range	9999 Seconds 999 Milli Seconds 999 Micro Seconds
Display	1) 16X2 Dot Matrix LCD
Display	2) With Second (9999 Sec), Millisecond (999 ms) & Microsecond(999µS)
Count on display	9999 999 999 Sec ms µs
Resolution	10µS
Mode of Operation 1	For START Pulse
	1) Apply DC Voltage (Up to 24VDC Max.)
	2) Remove Voltage (Apply 0 V)
	3) Closure of contact
	4) Open of Contact
Mode of Operation 2	For STOP Pulse
	1) Apply DC Voltage (Up to 24VDC Max.)
	2) Remove Voltage (Apply 0 V)
	3) Closure of contact
	4) Open of Contact
Measurement Accuracy	For 999 µS ± 0.05% ± 5 Digit, above 999µS ± 0.01%
Operating Temperature	10^oC to 40^oC
Storage Temperature	5^oC to 70^oC
Protection	Start & Stop pulses are isolated from each other.
Dimensions	250mm(W) X 200mm(D) X 180mm(H)
Weight	5kg. (Approx.)

Note : We Can Upgrade Products With Time To Give Improved Quality
