AC / DC High Voltage Measurement Probes - (100KV)

AC / DC High Voltage Measurement Probes - (100KV)

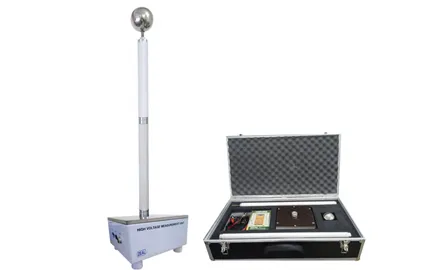

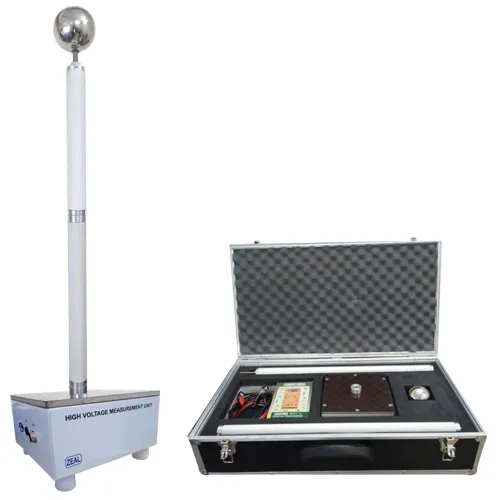

AC / DC High Voltage Measurement Probe

'Zeal' AC /DC High Voltage Measurement probes along with handheld Digital Multimeter is an essential combination to measure the output of High Voltage Transformers, High Voltage Testers, High Voltage Power Supplies, etc. The attenuation ratio is reasonably sufficient. The output accuracies for both DC & AC HV measurements are excellent.


Features
  • Measures both AC and DC Voltages with digital multimeter.
  • Lightweight & rugged.
  • A separate test clip for the ground connection is provided.
  • Supplied with 4½ digit digital multi-meter and carrying case.

Technical Specification

Model ZM100KHVP
Range 0 to 100 kV AC / DC
Attenuation Ratio 1kV : 100mV
Input Impedance > 200 MΩ
Accuracy: For DC up to 40 kV : ±2%, above 40 kV add ±0.05% per kV
For AC up to 40 kV : ±2.5%, above 40 kV add ±0.08% per kV
Mounting Box Dimension 200mm(W) x 200mm(D) x 100mm(H)
Probe Length
Part1= 652mm Part2 = 623mm HV Corona ball = 133mm Total length= 1408mm
Weight (Mounting Box + Probe) 3kg. (Approx.)
Weight with carrying case 12kg. (Approx.)

Note : We Can Upgrade Products With Time To Give Improved Quality
