AC/DC High Voltage Breakdown Testers, Manufacturer, Exporter, India

These products are known by other names like High Pot Testers, Voltage Withstand Capability Testers or simply High Voltage Testers also. Designed with better features and accuracy, our offered range of Breakdown Tester is meant for testing the electrical insulation ability and electric strength. ZEAL make testers are ideal for performing high voltage breakdown tests in production, in the laboratory, and for type approvals also. The tester of this category is robustly designed. Standard accessories of the tester include HV test probe, fully insulated crocodile clip & mains cord.

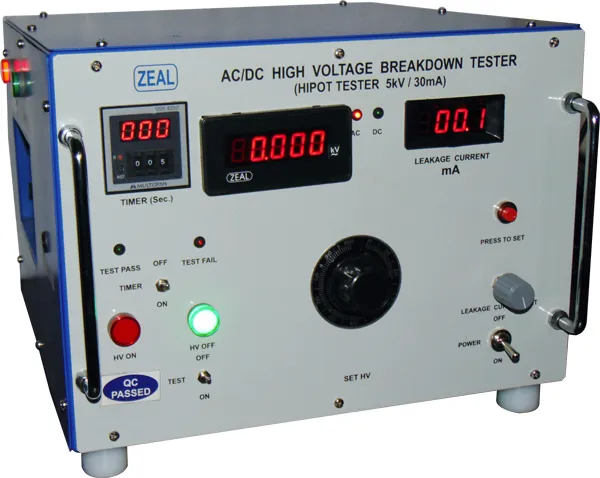

AC/DC High Voltage Breakdown Testers

We are Manufacturer, Supplier, Exporter of AC/DC High Voltage Breakdown Testers, High Voltage Breakdown Tester, Voltage Breakdown Tester and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

Features

Voltage variation by knob of variac.
Audio / Visual alarm when HV ON & OFF.
3^1/2 digit meter for Test Voltage (kV) indication.
3^1/2 digit meter for Leakage Current (mA) indication.
Trip current setting by press to set switch & potentiometer
Input Fuse protection.
Trip Current setting by Press to set switch & Potentiometer.
Input Fuse protection.
Timer to set Test duration.
Timer ON / OFF by toggle switch.
AC / DC selection by toggle switch.
Separate output ports of AC & DC kV.
Test ON / OFF by toggle switch.

Technical Specification

Make	ZEAL
Power	230V AC, 50Hz
DC Voltage Range	0 to 5kV DC
DC Leakage Current Range	0 to 20mA
AC Voltage Range	0 to 5kV AC
AC Leakage Current Range	0 to 20mA AC/DC Range Selection: AC/DC Selection by Short Link
Test Voltage Range Settable	by knob of Variac
Trip Current setting	by press to set switch & potentiometer, using digital mA meter
Programmable Timer	0 to 999 second with timer ON/OFF switch.
Metering	3 ½ digit Digital kV and mA meter
Resolution	0.01kV, 0.1mA respectively
Accuracy	kV:2% of reading ± 3dgt, mA: 1.5% of reading ± 2 dgt, Time:±0.5 second
Features	• Audio/Visual alarm when HV ON & OFF. • Test ON/OFF switch to start or interrupt test. • HV is removed whenever leakage current exceeds than the set value. • LED indication for Trip / Leakage. • Timer ON/OFF switch.
Indications	Trip, HV ON, HV OFF

AC / DC High Voltage Breakdown Testers

Rating	Model Series
5kV/10mA	ZMHV5A5D-10
5kV/20mA	ZMHV5A5D-20
5kV/30mA	ZMHV5A5D-30
5kV/50mA	ZMHV5A5D-50
5kV/100mA	ZMHV5A5D-100
5kV/500mA	ZMHV5A5D-500
10kV/20mA	ZMHV10A10D-20
10kV/30mA	ZMHV10A10D-30
10kV/50mA	ZMHV10A10D-50
10kV/100mA	ZMHV10A10D-100

Rating	Model Series
20kV/20mA	ZMHV20A20D-20
20kV/30mA	ZMHV20A20D-30
20kV/50mA	ZMHV20A20D-50
20kV/100mA	ZMHV20A20D-100
20kV/500mA	ZMHV20A20D-500
30kV/20mA	ZMHV30A20D-20
30kV/30mA	ZMHV30A20D-30
30kV/50mA	ZMHV30A20D-50
30kV/100mA	ZMHV30A20D-100
30kV/500mA	ZMHV30A20D-500
