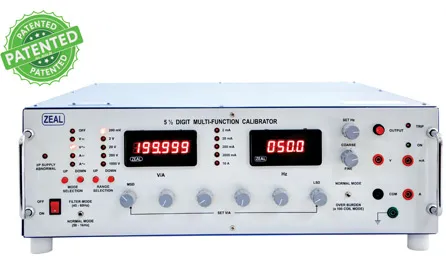

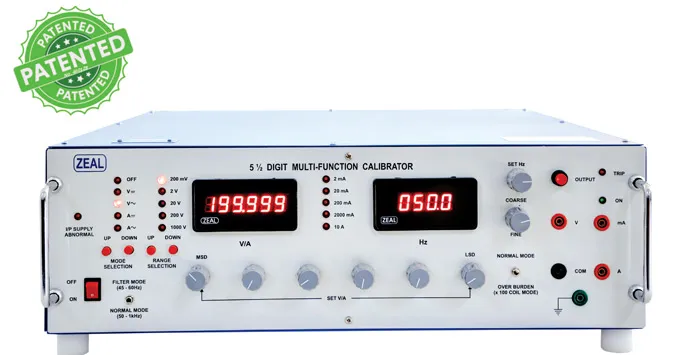

5.5 (5½) Digit Multi Function Calibrators

5.5 (5½) Digit Multi Function Calibrators
5.5 (5½) Digit Multi Function Calibrators

We are Manufacturer, Supplier, Exporter of 5.5 (5½) Digit Multi Function Calibrators, Multi Function Calibrators / Voltage & Current Standards and we are also specialized in Calibration Services. Our setup is situated in Pune, Maharashtra, India.

The Multi-Function Calibrator is useful for the calibration of Digital Multimeters, Clamp Meters, Digital Panel Meters, and Analog Panel Meters. It is a variable source with different ranges of DC Voltage, AC Voltage, DC Current, and AC Current. It has been designed to cover the calibration of maximum ranges of a variety of models of Multi meters available in the market.

The calibrator gives output, which is very stable. Stability is suitable enough to calibrate 41/2 and 43/4 DMM and Clamp-on Meters. By using this source along with a high-resolution standard Multimeters user can calibrate even 51/2 DMM. Calibrator has a micro controller unit, which handles all the parameter selection and range selection logic. Micro controller drives to the set of relays as per the logic program.

Features
  • Pure Sine Wave with variable frequency.
  • Overload and short circuit protection.
  • Setting by Decade switches for V/A in 51/2 digit.
  • Frequency setting by potentiometer.
  • Separate output ports for V( Hi ), mA( Hi ), 10A( Hi ) and Com.
  • Parameter and range selection by inbuilt micro controller based unit and relays. Bar of LEDs to indicate parameter and range.
Technical Specification

Model ZMMFC 5.5
Input Power Supply 230V AC, ±5 % @ 50Hz.
Voltage Range AC : 200mV, 2V, 20V, 200V, 1000V (45Hz to 1000Hz)
DC : 200mV, 2V, 20V, 200V, 1000V
Current Range AC : 2mA,20mA,200mA,2A,10A (45Hz to 1000Hz)
DC : 2mA, 20mA, 200mA, 2A, 10A
Accuracy AC Voltage : ±0.15% DC Voltage : ±0.10%
AC Current : ±0.15% DC Current : ±0.10%
Input Protection Calibrator is Protected by I/P OV (Over Voltage) & I/P UV (Under Voltage)
Operating Temperature 10oC to 40oC
Power OFF Storage Temperature 5oC to 70oC
Required Earth to Neutral Voltage Less than 1V AC
Drift due to ageing 50 PPM per year.
Short term stability of the set value 350 PPM
Extra O/P Port 200mV AC/DC for calibration/Testing of Analog meter
Display 5½ Digit 7 segment red LED display for Voltage & Current
4 Digit 7 segment red LED display for Frequency
Selection of AC/DC Parameters By up and down keys and bar of LED to indicate selected parameter
Selection of Ranges By up and down keys and bar of LED to indicate select range
Setting of Voltage & Current By decade switch
Setting of Frequency By multi turn potentiometer
Frequency Range Selection By Toggle Switch for Normal Mode: 45 to 1 kHz. & Filter Mode: 50 to 60Hz provided at front side.
Dimension 550mm(W) X 550mm(D) X 170mm(H)
Weight 25kg. (Approx.)

Note : Accuracies specified at 25 deg C, RH 75%, basic accuracy ±10 digits for DC parameters & basic accuracy ±15 digits for AC parameters.
